Smart Farming 30 Tower Farm

Pot Size

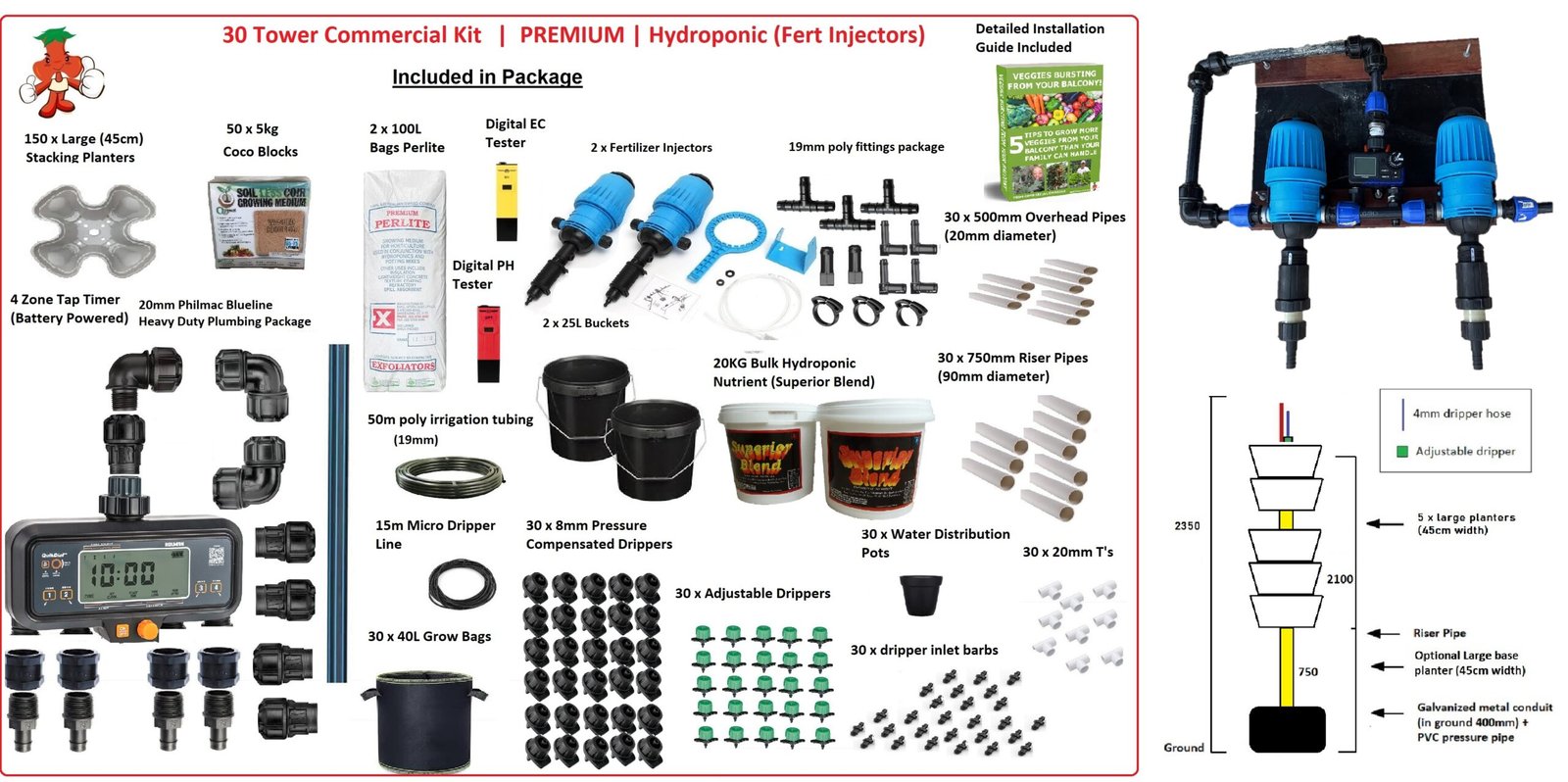

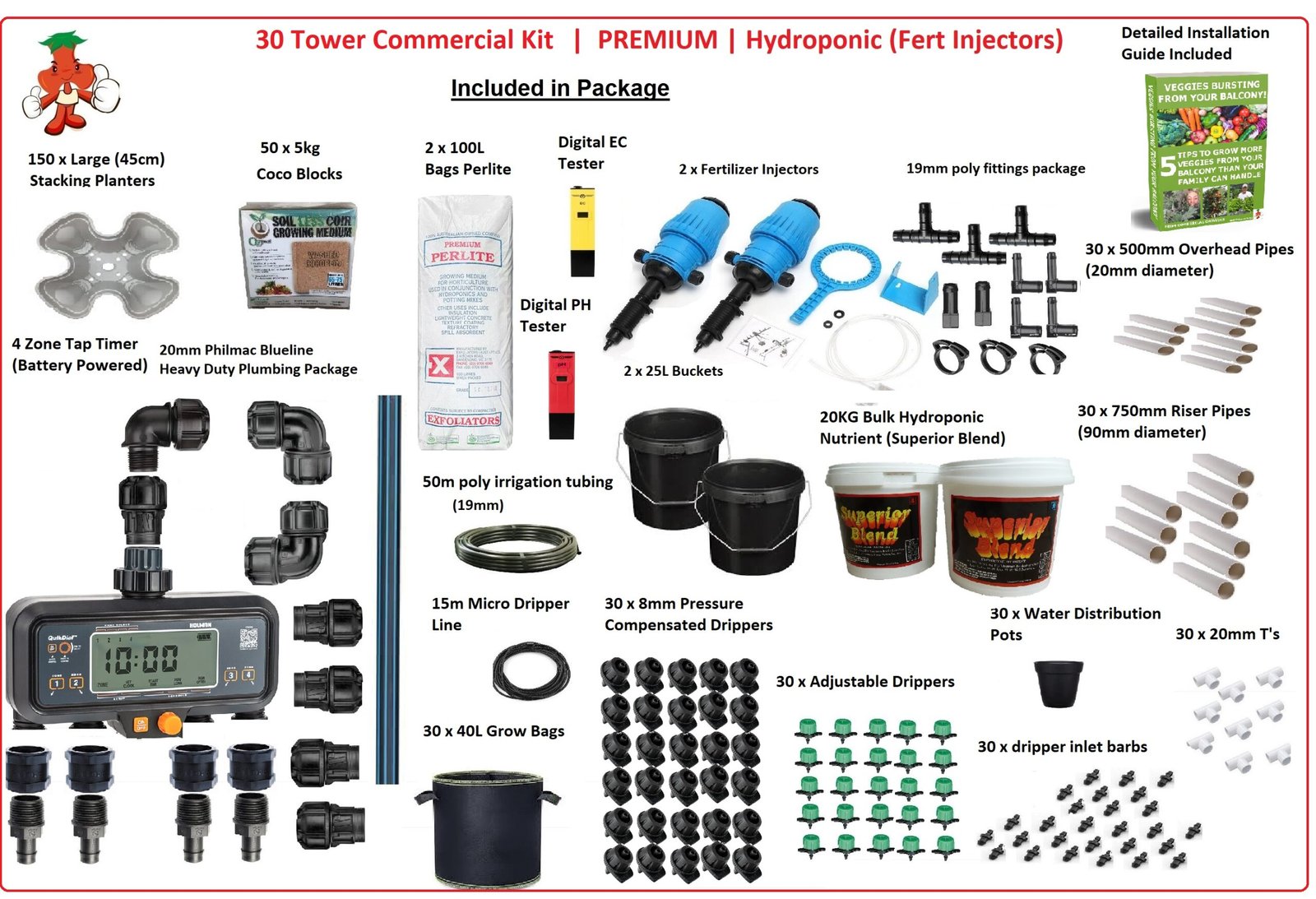

Farm Kit Inclusions

Description

Tower Farming Australia

Low Cost | High Yield | Commercial Quality

Exponential Yield with Every Stack

Rising food prices are a major issue in Australia. IF you have any small piece of land, you can monitize it with a semi-passive income stream. This 30 tower farm can hold up to 1200 plant sites and requires no more than 45 sqm of land!

The key to a successful farm in your backyard is using the right automation and growing technique. By choosing Mr Stacky you are leveraging the collective knowledge gained by thousands of successful growers worldwide.

Play

Amazing Value

Start up cost @ $118 p/tower with 28 plant sites p/sqm! Easily scale up to 60 plant sites p/sqm (Ask us how).

Amazing results

Expect robust, healthy, prolific growth & commercial quality produce. See below video for what crops grow best in tower farms.

Smart Technology capable

Choose the 'commercial fittings' option above for Wifi controlled irrigation from your phone. In-line EC/PH/Temp metering solutions also available etc.

Outdoor or Greenhouse

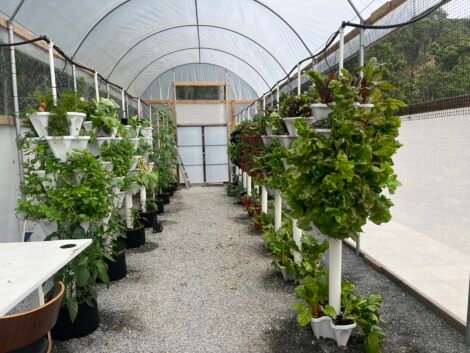

The Coco/perlite medium is an effective buffer against temperature variance enabling successful growth in various climates. See our outdoor overhead netting solutions or greenhouse & poly tunnel packages

Water Efficient

Tower farms can use up to 98% less water than traditional farming methods. Every drop of water is delivered directly where it is needed.

Hydroponic or Organic Nutrients

With hydroponic fertigation we inject nutrient into the water flow. With Organic, we add pelletized nutrient to the medium then add normal water + our secret sauce organic supplements for incredible yields.

Energy Efficient & Off Grid capable

Each tower requires only a small flush of water 3 times p/day. Compare that to aeroponics or NFT where constant recirculation is needed and the energy saving is massive! Solar options also available.

Quality Service

Dedicated Australian office with phone support and expert assistance. Detailed installation instructions included or we can set-up the whole farm for you.

Best Crops for Tower Farms

General Info

A Conservative Business Case

30 Tower Parsely, Basil, Coriander, Mint Farm

30 meter area (3 x 10)
4 plant sites p/stack, 7 stacks p/tower = 840 total plant sites
2 bunches p/plant site p/month = 1680 bunches
1680 bunches @$1.50 p/bunch = $2,520 gross sales p/month
$2520 p/month x 12 = $30,280 p/year
Upfront investment $5000
On-going costs approx $3000 p/year
(nutrient + water + coco coir + packaging)
Net income Year 1 – $22,280
Note: Yield increases if you stack higher! (see addon’s + overhead meshing solutions)
2x, 3x, 10x the yield with every 30 towers!

Commercial Farming FAQ

How far should I space the towers apart

We recommend min 1 to 1.2 meters apart to ensure adequate sun to all sections of the farm.

Can I add a spacer in the middle of the tower?

This is an excellent method to increase sunlight to the lower parts of the tower. In fact out latest recommended design for commercial set-ups is 3 meter poles that are secured overhead with simple wiring. Then a planter at the base of the tower, then first tier 500mm above the ground, then 5 medium stacks, then 25mm spacer, than 5 medium stacks. See this picture for an example

Whats the main advantage of a drain to waste system

Commercial quality yields (vertical growing methods)
No waste product or flushing of system required
Low operational costs
Plant constantly receives fresh nutrient instead of reconstituted/depleted nutrient
Easier to maintain a consistent PH level
Nutrient water is less prone to pathogen attack
Significantly less logistical and maintenance issues compared to re-circulation
Effective insulation of roots from extreme heat (using coco/perlite medium)
Strong buffers against any prolonged moisture loss
Almost no electricity usage as there is no water pump required
Highly cost effective with reusable medium

How much water is needed

This depends on a range of factors including sunlight, temperture, plant types and phases etc, but as a rule, we recommend budgeting for 1 litre per tower per day.

Why Mr Stacky Tower Farms?

Vertical farming with hydroponic technologies are expanding rapidly all across the world due to increased urban farming demands and production needs.

Most hydroponic facilties carry a substantial infrastructure outlay with the need for greenhousing, water re-circulate, water, temperature and pest management, reservoirs, pumping etc etc.

The infrastructure cost of a Mr Stacky tower farm are significantly less other systems with arguably an even better yield per square meter. With our latest farming methods, we have simple and scalable solutions for pest management, crop rotation, sunlight optimization, wind management and even an innovative per tower mini greenhouse solutions.

With a recirculating farm (eg. NFT), you run the risk of water born diseases being carried through to the entire farm. Our tower farms use a fertigation method which ensures fresh clean nutrient every feed with almost no water management overheads or expensive monitorring systems.

How does the fertilizer injector work

Our injectors are high quality with 1 year warranty and come with replacement parts to maintain optimal useage over time. They are used in commercial fertigation set-ups all over the world. They work like a venturi. As water is pushed through (from water pressure), a suction action is created inside the device, which extracts liquid fertilizer from a reservoir below and injects this into the flow of water which goes out to the garden. It is adjustable so you can varry the output from 0.4% – 4.0%

Fertilizer Injector FAQ's

Is it complicated? Do I need to be experienced to use it?

No, it’s actually very easy. Just install it against a wall between the garden and your water mains or water tank. The hardest bit is ensuring the right EC to your garden. We show you exactly how to do this. See this video

What is a fertilizer injector

These devices have been used in large scale agriculture & farming practices for decades. They are powered by water pressure. As water enters through the inlet, it drives an internal suction action just like a toilet plunger. This creates a vaccuum within the device which draws nutrient upwards from a tank below and injects this into the water flow at quantities between 0.4% to 4% of the total flow.

Whats the main advantage of this?

No electricity needed
No pumps needed (if using water mains)
No reservoirs needed
Injects fresh nutrient every feed
No recirculation needed
Long lasting, commercial quality
Allows precise nutrient measurement
Automated & easy to maintain

Why use this instead of a reservoir and pump?

This set-up is best used for larger scale operations which are cycling through more than 100 litres of water per week. It means you spend less time managing your reservoir. Because they rely on water pressure, they’re much more scalable then a water pump. 2 injectors are sufficient to power an entire 100 tower farm. (Part A & Part B nutrient)

How long do they last?

They come with a 1 year warranty on malfunction or parts replacement. They also come with replacement seals which can be used after 1 year or so to extend the life of the device well past 2-5 years.

Is this a Venturi?

Basically, this is a high quality venturi. You can pickup small venturi devices for $20 but in our experience they don’t work! It’s very hard to regulate the amount of suction and you end up wasting heaps of nutrient. Also, the venturi’s we’ve tested are very tepremental. It might work ok for a day, and then it stops sucking properly and your constantly second guessing if it’s working! These injectors are made for commericial growers who need consistency and longevitiy. Yes, the cost more, but they’re worth it.

What goes wrong with them?

Typically, the main issue is build up of mineral salt in the 6mm hose which extends into your nutrient solution. This can be easily resolved cleaning the hose fortnightly with a wire or simply running clean water through it.

How does it work with Part A & B nutrient?

For commercial farms, we recommend 2 x injectors. 1 for Part A & 1 for Part B. However for smaller residential set-ups, simply use 1 injector and combing the Part A & B nutrient in one reservoir at an EC of 15. This ensures no significant nutrient ‘lock-out’ or detrimental results. See these results. (All based on 1 injector and combined Part A &B at EC15)

Hydroponic Nutrient FAQ's

Are Hydroponic Nutrients Safe?

There is much conjecture about the nature of hydroponic nutrients and their safety in comparison to ‘natural’ or ‘organic’ soil. See this article for detailed info.

The artical concludes that:
a) Hydroponic nutrients are derived from the same base materials that conventional soil based nutrients are made
b) There is no evidence to support that plants grown with hydroponic mineral salts are detrimental to human health in any way. This evidence is based on multi-decades of analysis and use worldwide.

Hydroponic Nutrient Basics

All plants need fertilizer to grow. In traditional gardening plants receive nutrient from the soil which is enriched with minerals and organic additives which may include manure & compost. These soil additives can be very effective, but as with many ‘organic’ products, there is the potential for large disparity in the actual contents.

Nutients can be categorized as follows:

1) Macronutrients. Plants need these in large amounts. This includes: Hydrogen, Carbon, Nitrogen, Oyxgen, Phosphorus, Calcium.
2) Micronutrinets. Plats need these in small amounts>
This includes: Zinc, copper, iron, manganese, boron, cholorine, nickel, molybdenum, nickel.

What are Hydroponic Nutrients made of?

Standard hydroponic nutrients are derived from mineral salts. Hydroponic nutrients are simply plant nutrients that are designed for use in a hydroponic system. Plants require 16 elements to grow. Carbon, Hydrogen, Oxygen, and Nitrogen are already available in the air and water that they are receiving.

Mr Stacky Pty Ltd
Tallai, QLD 4213
ACN 658 668 636

Additional information

Weight	N/A
Dimensions	N/A
Pot Size	Large (45cm width), Medium (33cm width)
Farm Kit Inclusions	Advanced (commercial fittings), Planters Only, Simple (residential fittings)
